Decompiling Kasada's JavaScript VM

1. Executive Summary

Patrick van den Bosch's thesis describes a decompiler for Kasada's browser-side JavaScript virtual machine. The work treats the protection as a bytecode and interpreter problem: recover the bytecode parser, map per-instance control signals and opcode order, disassemble into an intermediate representation, reconstruct control flow, and generate readable JavaScript.

The strongest contribution is the decomposition of a VM-obfuscated anti-bot script into reviewable layers. The paper does not present a broad measurement of current Kasada deployments; it presents an implementation narrative with worked examples for decoding, value parsing, CFG construction, loop and conditional structuring, exception handling, and generated output.

2. Research Question

The thesis asks whether classical decompilation techniques can be adapted to Kasada's JavaScript VM so that custom bytecode can be translated back into structured, readable JavaScript.

3. Target System

The paper describes Kasada's client-side protection as a browser VM script that collects signals and posts them for token generation, plus a second script that attaches that token to outgoing requests. This report focuses on the VM and bytecode layer, not on server-side scoring or token validation.

4. Decompiler Pipeline

The thesis uses SWC to parse the obfuscated VM JavaScript into an AST and then analyzes that AST to locate interpreter components. After the bytecode is decoded and parsed, the disassembler emits a human-readable intermediate representation and builds basic blocks from reachable instruction pointers.

5. Control Flow Recovery

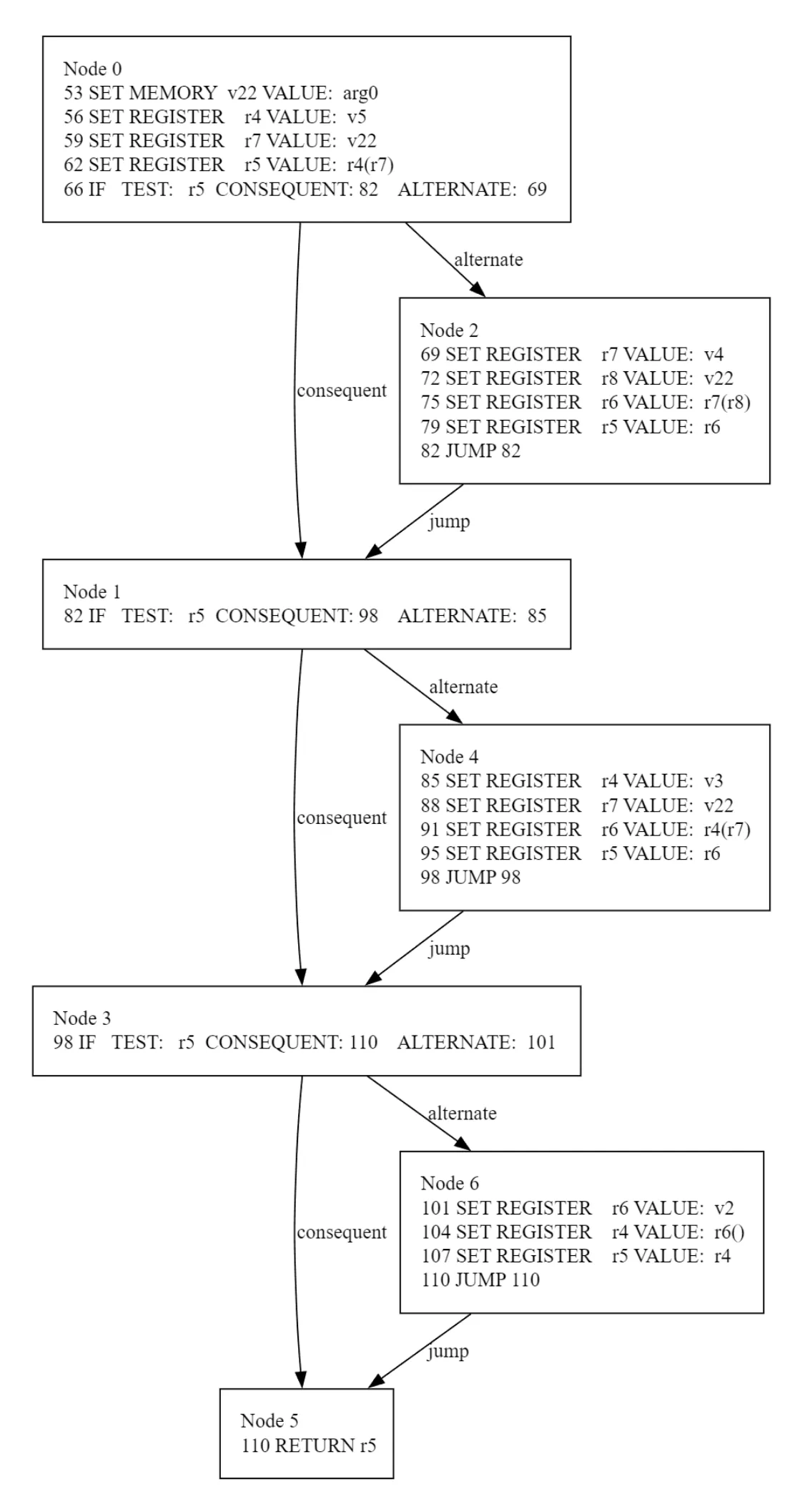

Control-flow recovery is the center of the thesis. The decompiler builds per-function CFGs and then structures loops, exception handlers, and conditionals before code generation.

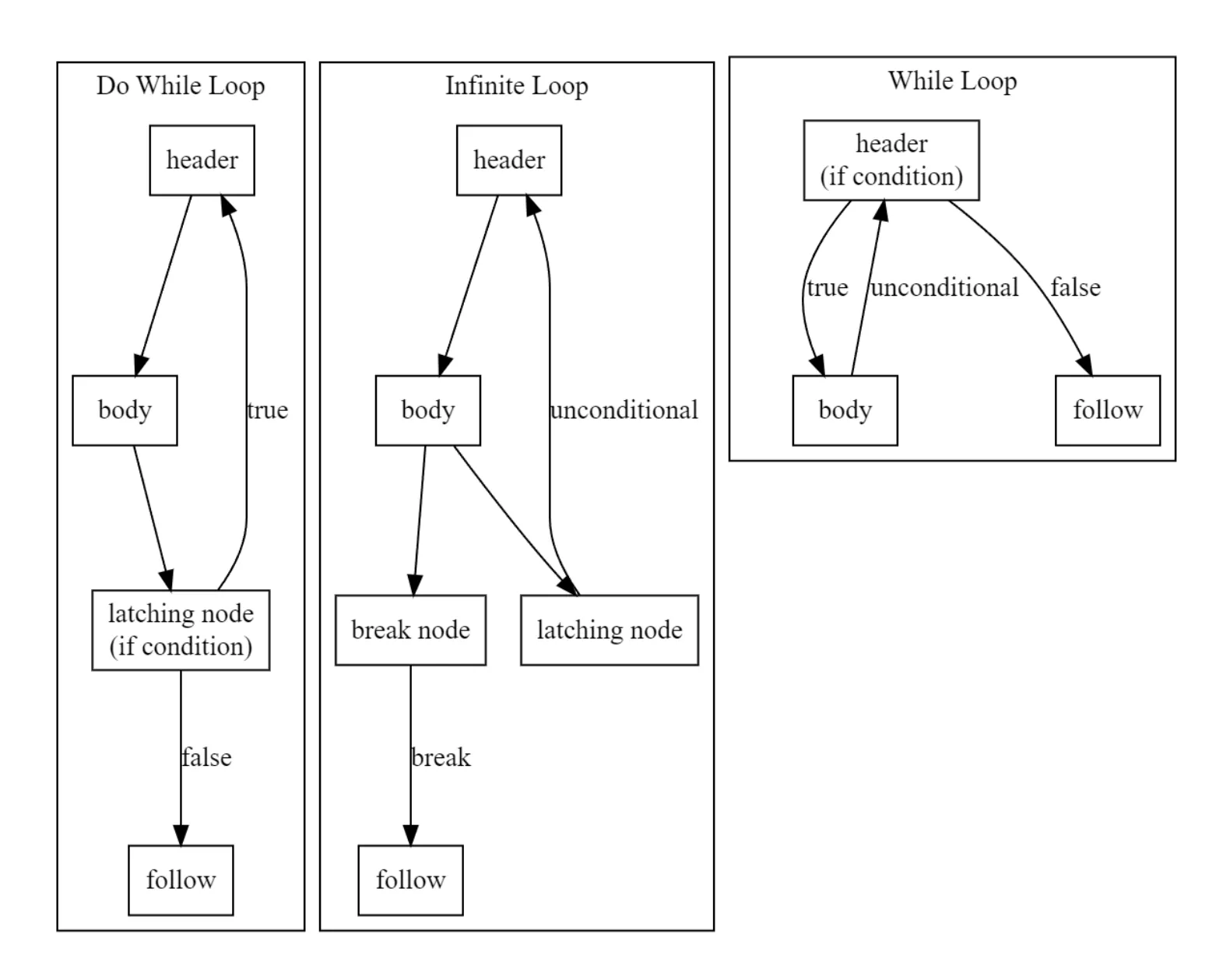

• Loop analysis. The thesis starts with Johnson's algorithm for elementary circuits, then classifies loops as while, do-while, or infinite-loop-with-break patterns based on header, latch, condition, and external-exit structure.

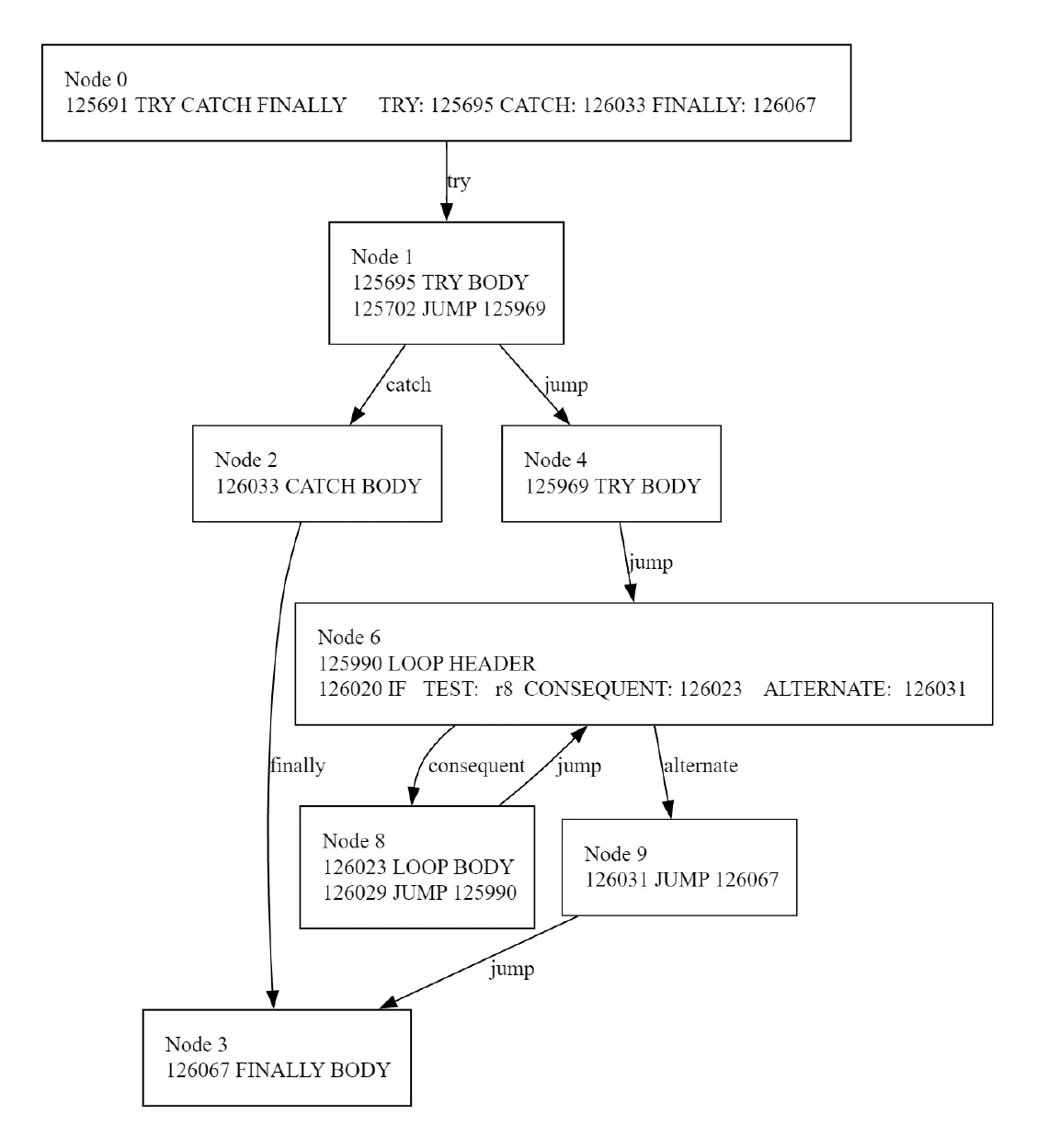

• Exception analysis. Exception handlers are structured before ordinary conditionals because catch and finally edges can otherwise be misread as branch edges.

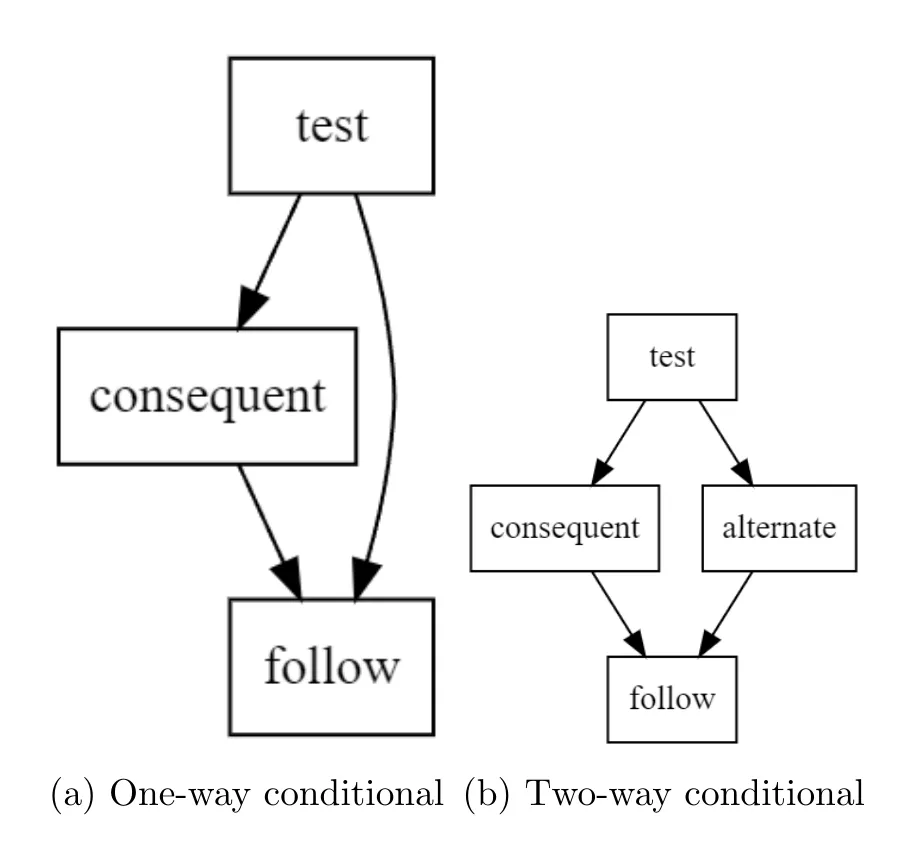

• Conditional analysis. The decompiler uses a Cifuentes-style structuring approach and dominance information to find one-way and two-way conditional regions and their follow nodes.

6. Evidence

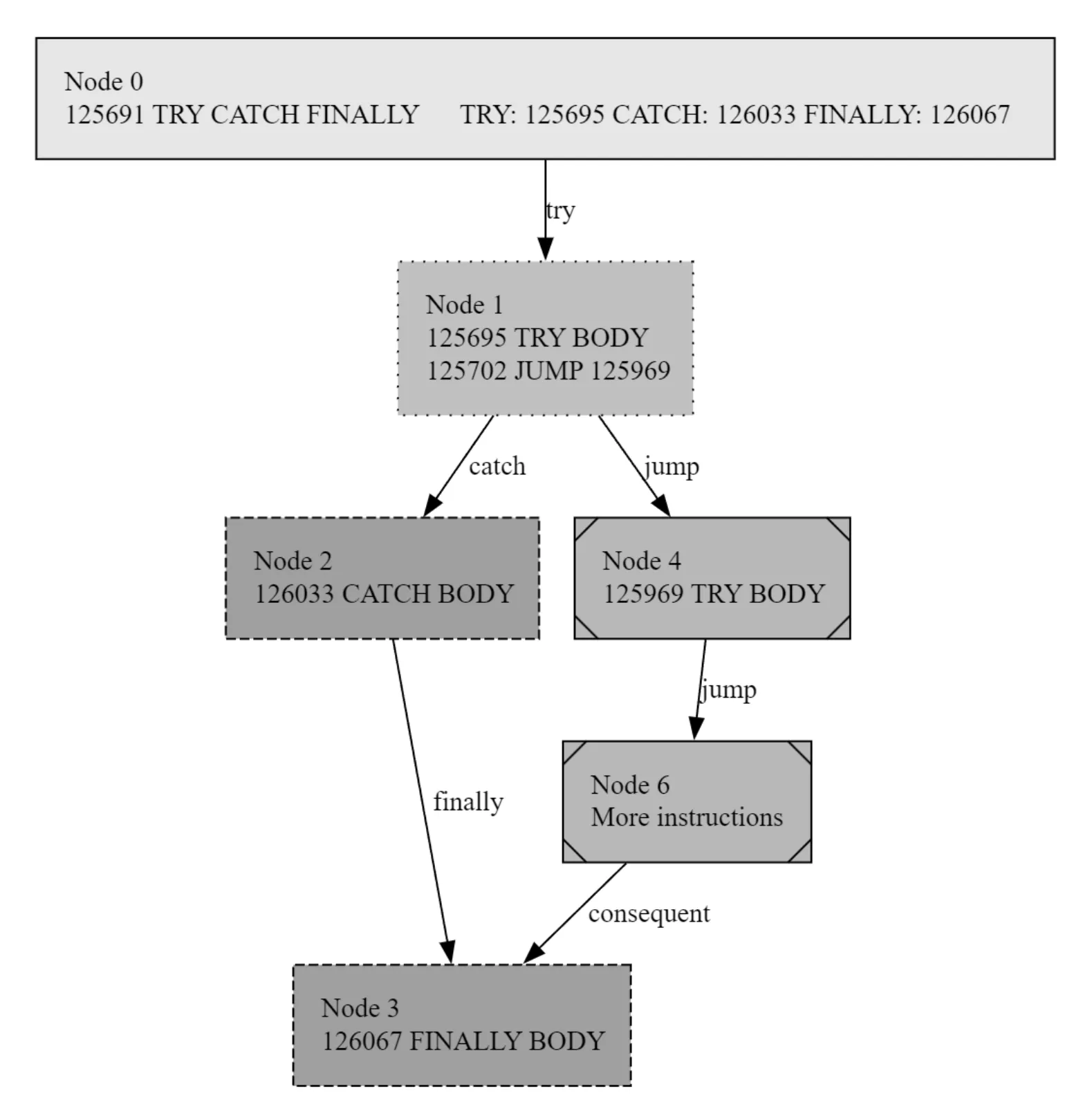

The thesis evidence is qualitative. It includes worked bytecode and parser examples, an IR example, CFG figures, explicit loop and conditional patterns, a try-body traversal figure, and a generated JavaScript listing. It does not include a public benchmark or measured coverage across a corpus of Kasada VM instances.

7. Code Artifacts

These local review helpers are reconstructed or modernized from the thesis descriptions. They are not the author's original decompiler and do not reproduce Kasada production bytecode.

;(async () => {
  const alphabet = "abcdefghijklmnopqrstuvwxyzABCDEFGHIJKLMNOPQRSTUVWXYZ0123456789";
  const delimiter = 40;
  const base = alphabet.length - delimiter;

  function encodeNumber(value) {
    const chars = [];
    let remaining = value;

    while (remaining >= delimiter) {
      const charIndex = delimiter + ((remaining - delimiter) % base);
      chars.push(alphabet[charIndex]);
      remaining = (remaining - charIndex) / base;
    }

    chars.push(alphabet[remaining]);
    return chars.join("");
  }

  function decodeBytecode(encoded) {
    const values = [];

    for (let i = 0; i < encoded.length; ) {
      let value = 0;
      let multiplier = 1;

      while (i < encoded.length) {
        const charIndex = alphabet.indexOf(encoded[i++]);
        if (charIndex < 0) throw new Error("Character is not in alphabet");

        value += multiplier * (charIndex % delimiter);
        if (charIndex < delimiter) break;

        value += delimiter * multiplier;
        multiplier *= base;
      }

      values.push(value | 0);
    }

    return values;
  }

  const sampleValues = [1, 14, 127, 2048];
  const encoded = sampleValues.map(encodeNumber).join("");
  const result = { encoded, decoded: decodeBytecode(encoded), sampleValues };

  console.log(result);
  return result;
})()

;(async () => {
  const controls = [6, 18, 14, 2, 20, 40];
  const stream = [
    (21 << 1) | 1,
    controls[1],
    controls[3],
    controls[4],
    controls[5],
    controls[2],
    2,
    88,
    107,
    7 << 5
  ];

  function decodeStringInteger(k) {
    return (k & 0xffffffc0) | ((k * 59) & 0x3f);
  }

  function readValue(state) {
    const r = state.stream[state.ip++];

    if (r & 1) return { type: "integer", value: r >> 1 };
    if (r === controls[1]) return { type: "boolean", value: true };
    if (r === controls[3]) return { type: "boolean", value: false };
    if (r === controls[4]) return { type: "null", value: null };
    if (r === controls[5]) return { type: "undefined", value: undefined };

    if (r === controls[2]) {
      const length = state.stream[state.ip++];
      let value = "";

      for (let i = 0; i < length; i++) {
        value += String.fromCharCode(decodeStringInteger(state.stream[state.ip++]));
      }

      return { type: "string", value };
    }

    return { type: "register", value: `r${r >> 5}` };
  }

  const state = { ip: 0, stream };
  const decoded = [];
  while (state.ip < state.stream.length) decoded.push(readValue(state));

  const result = { controls, stream, decoded };
  console.log(result);
  return result;
})()

;(async () => {
  function classifyLoop(pattern) {
    if (pattern.headerHasCondition && pattern.latchJumpsToHeader) return "while";
    if (pattern.latchHasCondition && pattern.latchJumpsToHeader) return "do-while";
    if (pattern.latchJumpsToHeader && pattern.hasExternalBreak) return "infinite-with-break";
    if (pattern.latchJumpsToHeader) return "infinite";
    return "not-a-loop";
  }

  const samples = {
    whileLoop: {
      headerHasCondition: true,
      latchHasCondition: false,
      latchJumpsToHeader: true,
      hasExternalBreak: false
    },
    doWhileLoop: {
      headerHasCondition: false,
      latchHasCondition: true,
      latchJumpsToHeader: true,
      hasExternalBreak: false
    },
    infiniteLoop: {
      headerHasCondition: false,
      latchHasCondition: false,
      latchJumpsToHeader: true,
      hasExternalBreak: true
    }
  };

  const result = Object.fromEntries(
    Object.entries(samples).map(([name, pattern]) => [name, classifyLoop(pattern)])
  );

  console.log(result);
  return result;
})()

8. Limitations

• No data flow analysis. The paper's explicit main limitation is the absence of DFA, which would improve data relationship tracking, variable naming, compound expression identification, and generated-code optimization.
• No quantitative evaluation. The PDF does not report a corpus size, number of VM instances, opcode-identification accuracy, CFG-recovery accuracy, JavaScript equivalence tests, runtime, or scalability measurements.
• No public implementation link. The thesis says sensitive implementation details are intentionally withheld, so the decompiler cannot be replicated from the PDF alone.
• Current-production scope is unverified. Treat the Kasada details as the thesis author's analyzed system description, not as an independently validated statement about Kasada's current production behavior.
• Generated JavaScript remains qualitative evidence. The example output shows feasibility, but the PDF does not prove semantic equivalence across a broad set of bytecode programs.

9. Reviewer Notes

The extracted source identifies the work as Patrick van den Bosch, Decompilation of Kasada's JavaScript Virtual Machine, Bachelor's Thesis Computing Science, January 6, 2025. The PDF has no DOI, arXiv URL, public repository, or complete institution metadata in the extracted title-page text.

• Keep the page in Draft until a reviewer confirms the thesis label, venue/institution wording, and PDF download availability.
• Do not convert the working-decompiler claim into a broad statement about Kasada VM coverage or current anti-bot bypass capability.
• Scope dynamic opcode and control-signal variation to the analyzed VM instances described by the thesis.
• The source PDF path was normalized to content/pdf/2025 - Decompilation of Kasadas JavaScript Virtual Machine.pdf; the display title preserves the apostrophe in Kasada's.
